Fiber Molding Industrial Package Machine / Pulp Luxury Packaging Cellulose Thermoforming Machine

Product Details:

Place of Origin:	China
Brand Name:	NANYA
Certification:	CE/TUV/SGS/ISO9001
Model Number:	YC051

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	45-120days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30sets/month

Contact Now

Detailed Product Description

Product Name:	Thermoforming Machine	Capacity:	12-25kgs Per Hour
Automation:	Fully-automatic	Forming Type:	Vacuum Suction / Thermoform
Model:	YC051	Processing Material:	Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Or Wood Pulp
Voltage:	220 V - 450 V	Drying Type:	Drying In Mould
Highlight:	Fiber Molding industrial packaging machine , Cellulose Thermoforming machine , Fiber molding machine

Fiber molding machine/ High quality industrial package machine/Pulp luxury packaging/Cellulose Thermoforming machine

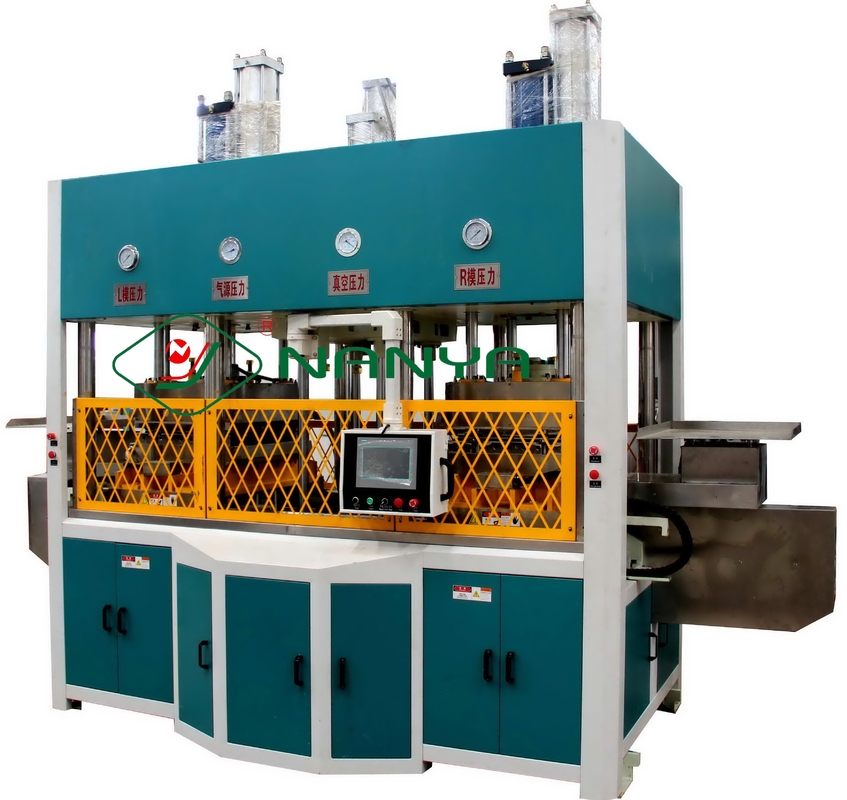

Thermoforming machine is a special equipment that makes paper pulp into luxury packaging through vacuum suction, dewatering, demoulding, drying and hot pressing.

Product molding, drying, shaping and other processes on the machine continuous automatic production, the production of products with high qualified rate, uniform thickness, high finish characteristics. This machine is mainly suitable for the production of luxury packaging products, such as electronical products package, perfume package, etc.

Specifications

Model Type	YC051
Capacity	12kgs~25kgs per hour
Workshop Requirement	≥300 m²
Electricity Consumption	130-170 kw
Electricity Installed	210 kw
Material Consumption	12 ~ 25 kg/h
Water Consumption	50 ~ 60 kg/h
Worker Requirement	3-4 persons
Container Requirement for Shipment	2 x 40’ HQ
Forming Type	Vacuum suction, thermoforming
Drying Method	Drying in mould

Descriptions:

This is a fully automatic pulp molding production line
It’s mainly used for high quality pulp molded products, such as luxury packaging products, such as electronical products package, perfume package, etc
This type of production line is constituted by a hydrapulper system, a fully automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

Status: Brand new
Product Type: thermoforming Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: YC051
Voltage: 220V - 440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Applications:

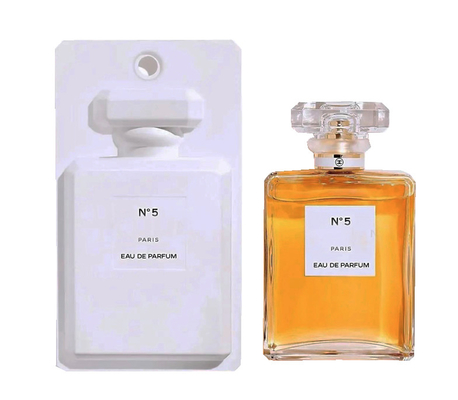

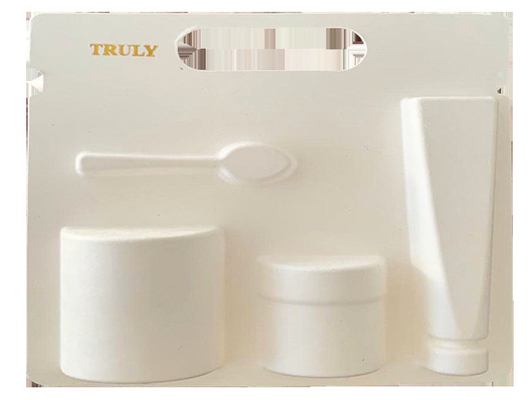

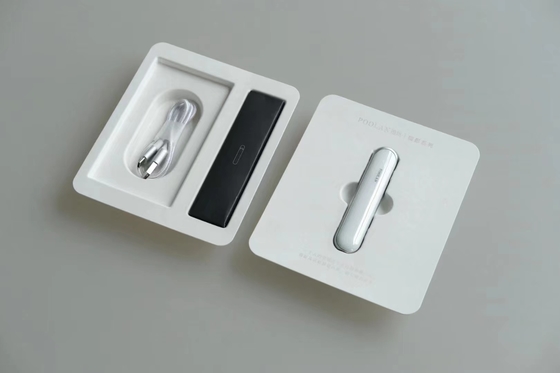

High quality packages	Mobile phone package, electronical products package, perfume package

Competitive Advantages:

Fully antomatic production line
Siemens servo motor is applied
Energy saving and labor utilization
High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	75-120days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
